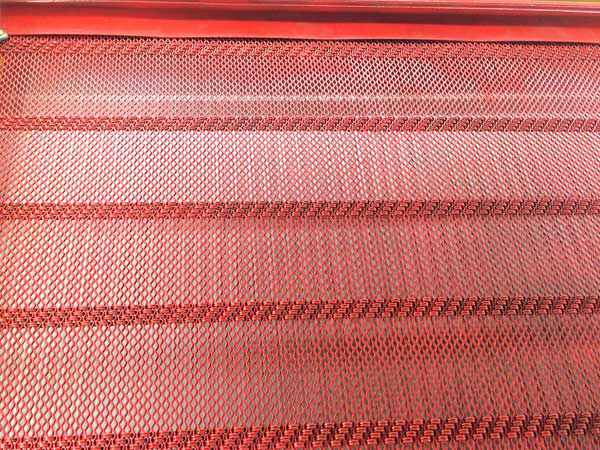

RED Self Clean Screen

Share to:
sharethis sharing button
The per-undulated wire, placed one next to the other form the aperture. this way the materials follow the direction fo one of the diagonals of the aperture. as the wirers are independent, the colisions produced by the products cause the differences in the vibration the prevent the clogging of the fine products between the wires. this type of mesh is the most used as it has the largest available percent-age of screening surface. polyurethane or wired bands are used to keep in place the aperture of these meshes. the wired ones are used when the classification is done at higher temperatures than 80 like at the asphalt mixture plants.
  • Anping County Xinghuo Metal Mesh Factory

  • 7314490000

Color:
Material:
Availability:
Quantity:

Self cleaning screen mesh is made of high tensile steelwire and stainless steel wire. It can offer effective solutions to difficult sizing and aggregate separation conditions, such as the blinding and plugging.


It is widely used in the separating materials in the mining, quarry and other industries.


Characteristics:

high performance and excellent self cleaning,long wear-life

More opening area

Eliminates blinding and plugging

3 times longer wear life time than woven wire

Minimizes down time cleaning and unclogging

Maximizes throughput

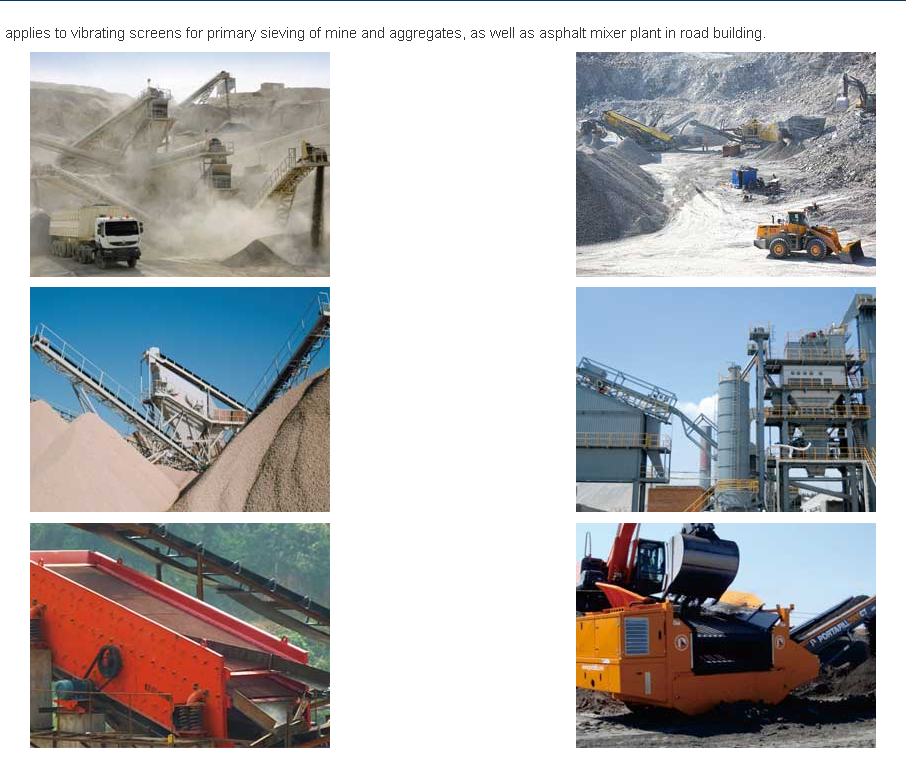

Application:

sand and gravel industry,

ore preparation plants,

mining industry

For damp, sticky, hard-to-screen material


This type of mesh is the most used as it has the largest available percentage of screening surface.

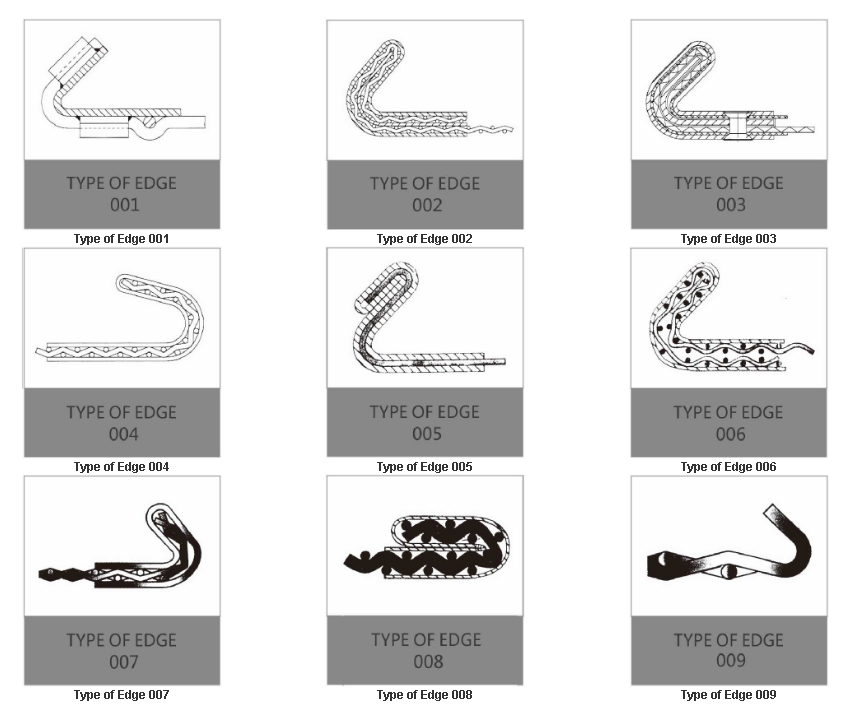

The pre-undulated wires, placed one next to the other ,form the aperture.This way the materials follow the direction of one of the diagonals of the aperture.Edge TypeApplications
