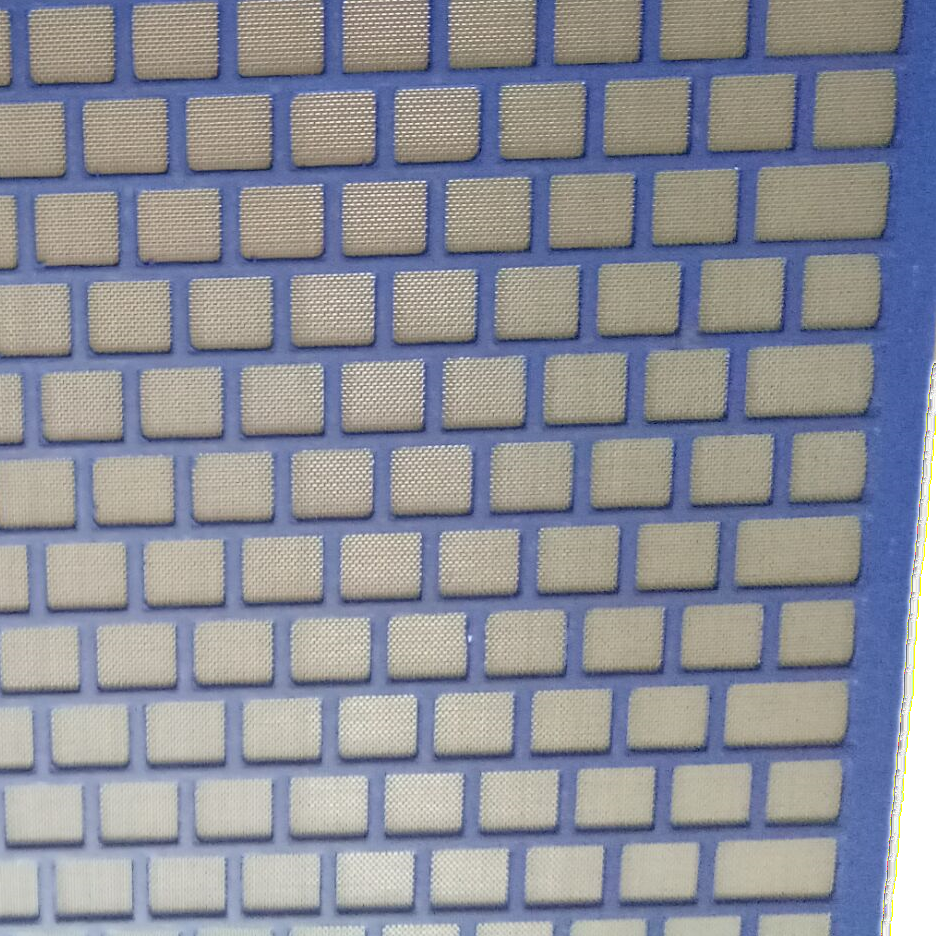

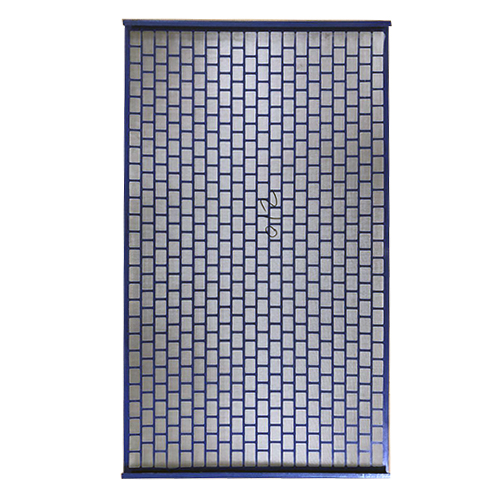

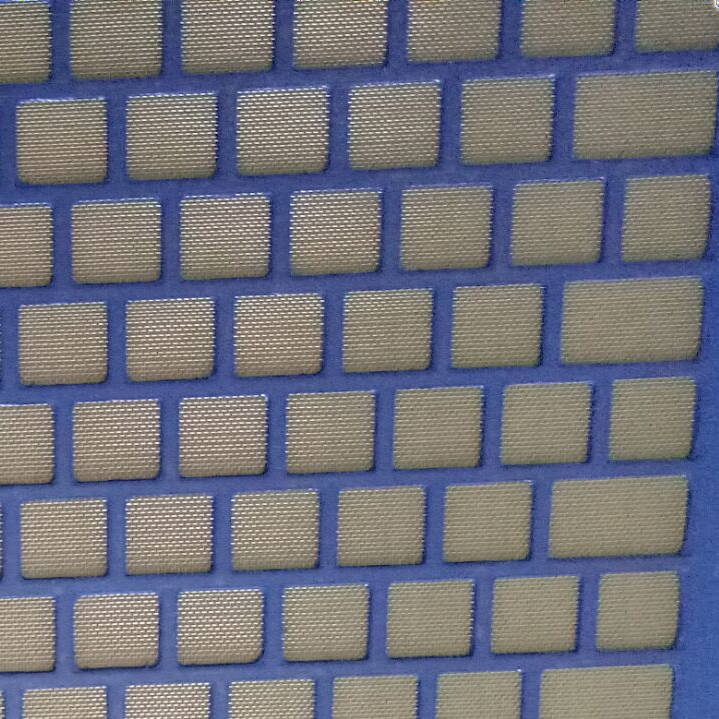

DFE Replacement Shaker Screens

Share to:
sharethis sharing button
These products screen panel are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together,Because of different mesh size,and steel backing olate,on the condition of using intensity,to get the best and most effective filtering area
  • DFE

  • Xinghuo

  • 8474900

Type:
Certificate:
Mesh Range:
Size:
Color:
Availability:
Quantity:

Hook strip flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hook strip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessory rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hook strip flat screens with mesh sizes ranging from 20 to 325.



Features of Hook strip flat screens

1.The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased

2.The mesh, divided into many independent small units by grids of the backing plate, can prevent rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damages. By doing so, the operator can cut down the stop time and reduce the cost.



 Hookstrip flat screens the series applied most widely at present, Main feature as follows:

1)These products screen panel are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together,Because of different mesh size,and steel backing olate,on the condition of using intensity,to get the best and most effective filtering area

2)The above of thin wire cloth with middle and the bottom of the thick wire cloth,combined with different thickness steel backing plate together infinitely enhance the whole screen use intensity. Because of different model and clients requirement.can choose different steel backing plate form,for exqmple hexagona rectangular,square and so on,supporting the above different screen cloth,the whole cloth is divided into independent small surfaces,prevent the part excessive expansion damaged,better extend working life.


ModelDEF
Size1230*720mm
ColorBlue Green
Screen Size20-325mesh
Weight6.8KGS
